Compressed Air Piping Systems

We are Manufacturer, Supplier, Exporter, Services Provider of Aluminium Compressed Air Piping Systems, Modular Air Pipe System, Pipe Accessories For Industrial Air Compressors, Compressed Air Piping, Modular Aluminum Piping System, Aluminium Pipe For Compressed Air, Advance Piping Solutions, Inert Gas Piping Systems, Compressed Air Pipe Fitting, Compressed Air Accessories. Our setup is situated in Pune, Maharashtra, India.


Engineering, Procurement, Construction

FLOWELL PNEUMATICS PVT. LTD. is providing the complete compressed air piping solution with excellent operational efficiency and perfect suitability for various industrial applications at competitive cost.
Compressed air piping System directly affects the three key element of every compressed air system.

  • Flow
  • Pressure
  • Air Quality

Poor choice of piping material, incorrect pipe diameter and wrong piping layout is the main cause of increased energy consumption and underperforming of tools and equipment.




Flowell Pneumatics

FLOWELL piping system stay ahead in competition when it come's to reliability, rigidness, quality and durability. Our system is modular and corrosion free, it meets highest industrial standards and has 10 years warranty.

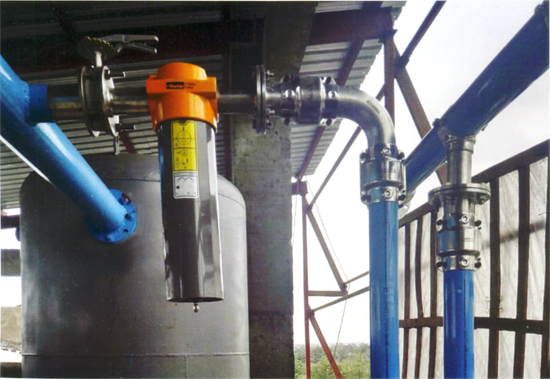

FLOWELL solid metal piping system offers you simple design and substantial strength which ensuring easy installation. It is an excellent choice for compressed air/ vacuum and inert gases for distribution up to 13 bar/-0.87 bar operating pressure in the temperature range -20oc to +75oc. The smoother interior construction of extruded aluminium pipe 6063-T6 and SS-316L seamless has low coefficient of friction and full bore fittings which minimize the pressure drop and provide best laminar flow & leak free connections are preventing air loss/wastage.




FLOWELL PNEUMATICS PVT. LTD. PIPE DIAMETER SELECTION CHART

FLOW
(CFM)		 PIPE LENGTH (MTR)
50 100 150 200 250 300 350 400 450
25 21 21 21 33 33 33 33 33 33
50 33 33 33 33 33 33 33 33 33
100 33 33 48 48 48 48 48 48 48
150 33 48 48 48 48 48 48 48 48
220 48 48 48 48 60 60 60 60 60
300 48 48 60 60 60 60 60 60 60
400 48 60 60 60 60 73 73 73 73
550 60 60 73 73 73 73 73 90 90
650 60 60 73 73 90 90 90 90 90
750 60 73 90 90 90 90 90 90 90
900 73 73 90 90 90 90 90 90 90
1200 73 90 90 90 114 114 114 114 114
1450 73 90 114 114 114 114 114 114 114
1800 90 114 114 114 114 114 114 114 114
2150 90 114 114 114 114 114 114 114+ 114+
2300 90 114 114 114 114 114 114+ 114+ 114+
2700 90 114 114 114 114+ 114+ 114+ 114+ 114+
3000 114 114 114 114+ 114+ 114+ 114+ 114+ 114+


PIPE OD - 48MM/1 ½"
Conveying flow - 220 CFM @7 BAR
Header length - 200Mtr

Contracting

PIPE OD - 40MM / 1½"
Conveying flow - 220 CFM @7 BAR
Header length - 67 Mtr

Contracting

PIPE OD - 60MM /2"
Conveying flow - 400 CFM @7 BAR
Header length - 250Mtr

Contracting

PIPR OD -50MM/2"
Conveying flow - 400 CFM @7 BAR
Header length - 93 Mtr

Contracting

ADVANTAGES

  • Corossion resistant material
  • Delivery clean air
  • Low friction losses
  • Simplr & Quick fitting
  • Resistant to compress oils
  • High impact strength
  • Operating pressure upto 13 bar
  • Size range from 21 mm to 114 mm
  • It combines the light weight, corrosion free piping system with easy installation & long life


PIPE OD - 73MM /2½"
Conveying flow - 550 CFM @7 BAR
Header length - 350Mtr

Contracting

PIPE OD - 63MM /2½"
Conveying flow - 550 CFM @7 BAR
Header length - 158Mtr

Contracting

PIPE OD - 90MM /3"
Conveying flow - 900 CFM @7 BAR
Header length - 450Mtr

Contracting

PIPR OD - 76MM/3"
Conveying flow - 900 CFM @7 BAR
Header length - 194 Mtr

Contracting


PIPR OD - 114MM/4"
Conveying flow - 1800 CFM @7 BAR
Header length - 450 Mtr

Contracting

PIPR OD -100MM/4"
Conveying flow - 1800 CFM @7 BAR
Header length - 220 Mtr

Contracting
